Magnet GN52.4

Magnet i AlNiCo eller neodym med gängad elle slät tapp (slät tapp utgående).
Form AN: AlNiCo (aluminium/ nickel/kobolt). Max. temp=450°C.
Form ND: NdFeB (neodym/järn/bor). Max. temp=80°C.

Avskärmning i förzinkat stål med slät tapp (D) eller gängad tapp (E).

Beställningsexempel: GN52.4-AN-16-5-D

CAD-filer

Häftkraft (N) \*

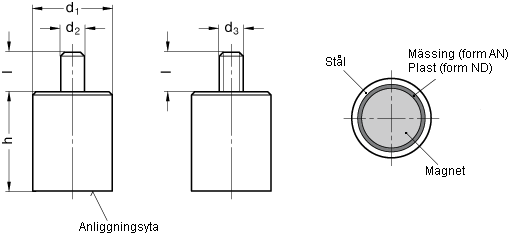

d1 d2 ±0,2 d3 h ±0,2 l (slät tapp) l (gängad tapp) Form AN Form ND
6 3 M 3 20 8 7 2 6
8 3 M 3 20 8 7 4 12
10 4 M 4 20 8 8 8,5 24
13 4 M 4 20 8 8 12 60
16 5 M 4 20 8 10 20 90
20 6 M 6 25 8 10 40 135
25 8 M 6 35 10 10 60 190
32 10 M 8 40 10 12 160 340
40 15 M 8 50 20 15 240 600
50 18 M 10 60 25 15 400 900
63 20 M 12 65 30 20 660 1300
Mängdrabatt
Art.nrBenämningKr/st ex.moms-10%-20%
GN52.4-AN-6-3-DMagnet60.9010 st50 st
GN52.4-AN-8-3-DMagnet63.6010 st50 st
GN52.4-AN-10-4-DMagnet72.8010 st50 st
GN52.4-AN-13-4-DMagnet81.3010 st50 st
GN52.4-AN-20-6-DMagnet122.3010 st50 st
GN52.4-AN-25-8-DMagnet178.0010 st50 st
GN52.4-AN-32-10-DMagnet358.0010 st50 st
GN52.4-AN-40-15-DMagnet690.0010 st50 st
GN52.4-AN-50-18-DMagnet1263.0010 st50 st
GN52.4-AN-63-20-DMagnet2403.0010 st50 st
GN52.4-AN-6-M3-EMagnet69.1010 st50 st
GN52.4-AN-8-M3-EMagnet77.2010 st50 st
GN52.4-AN-10-M4-EMagnet86.0010 st50 st
GN52.4-AN-13-M4-EMagnet97.5010 st50 st
GN52.4-AN-16-M4-EMagnet109.1010 st50 st
GN52.4-AN-20-M6-EMagnet141.9010 st50 st
GN52.4-AN-25-M6-EMagnet197.8010 st50 st
GN52.4-AN-32-M8-EMagnet383.0010 st50 st
GN52.4-AN-40-M8-EMagnet738.0010 st50 st
GN52.4-AN-50-M10-EMagnet1339.0010 st50 st
GN52.4-AN-63-M12-EMagnet2426.0010 st50 st
GN52.4-ND-6-3-DMagnet42.2010 st50 st
GN52.4-ND-8-3-DMagnet45.0010 st50 st
GN52.4-ND-10-4-DMagnet49.6010 st50 st
GN52.4-ND-13-4-DMagnet56.8010 st50 st
GN52.4-ND-16-5-DMagnet68.7010 st50 st
GN52.4-ND-20-6-DMagnet92.3010 st50 st
GN52.4-ND-25-8-DMagnet151.4010 st50 st
GN52.4-ND-32-10-DMagnet229.7010 st50 st
GN52.4-ND-6-M3-EMagnet51.2010 st50 st
GN52.4-ND-8-M3-EMagnet54.2010 st50 st
GN52.4-ND-10-M4-EMagnet59.9010 st50 st
GN52.4-ND-13-M4-EMagnet64.7010 st50 st
GN52.4-ND-16-M4-EMagnet74.0010 st50 st
GN52.4-ND-20-M6-EMagnet102.8010 st50 st
GN52.4-ND-25-M6-EMagnet163.6010 st50 st
GN52.4-ND-32-M8-EMagnet247.4010 st50 st
GN52.4-ND-40-M8-EMagnet488.0010 st50 st
GN52.4-ND-50-M10-EMagnet779.0010 st50 st
GN52.4-ND-63-M12-EMagnet1297.0010 st50 st
