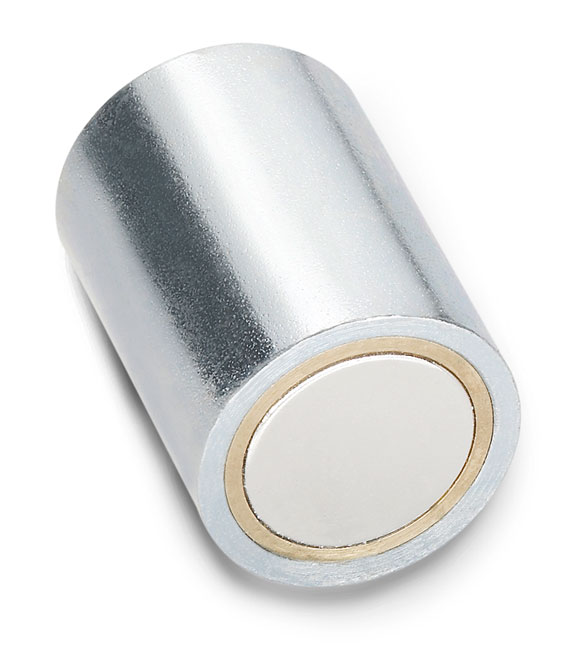

Magnet GN52.1

Magnet i AlNiCo eller NdFeB.
Form AN: AlNiCo (aluminium/nickel/kobolt). Max. temp = 450°C.
Form ND: NdFeB (neodym/järn/bor). Max. temp = 80°C.

Avskärmning i förzinkat eller blankt stål.
Slutsiffra 1: förzinkad avskärmning, tolerans för mått d=±0,2mm.
Slutsiffra 2: blank avskärmning, tolerans för mått d=h6.

* Den maximala längd med vilken avskärmningen kan kapas utan att magneten förlorar sina egenskaper.

Beställningsexempel: GN52.1-AN-20-2

CAD-filer

Form ANForm ND
Slutsiffra 1 Slutsiffra 2 Slutsiffra 1 Slutsiffra 2 Häftkraft (N) \*
d h ±0,2 k\* h ±0,2 k \*h ±0,2 k\* h ±0,2 k\*Form AN Form ND
4 \- \- \- \- 20 15 \- \- 2,5
5 \- \- \- \- 20 15 \- \- 4,5
6 20 12 10 2 20 15 10 5 2 6
8 20 11 12 3 20 15 12 7 4 12
10 20 10 16 6 20 15 16 11 8,5 24
13 20 8 18 6 20 15 18 13 12 60
16 20 6 20 6 20 15 20 15 20 90
20 25 5 25 5 25 18 25 18 40 135
25 35 13 30 7 35 27 30 22 60 190
32 40 9 35 4 40 32 35 27 160 340
40 50 10 45 5 \- \- \- \- 240 \-
50 60 10 50 \- \- \- \- \- 400 \-
63 65 10 60 5 \- \- \- \- 660 \-
Mängdrabatt
Art.nrBenämningKr/st ex.moms-10%-20%
GN52.1-AN-6-1Magnet51.3010 st50 st
GN52.1-AN-8-1Magnet55.0010 st50 st
GN52.1-AN-10-1Magnet62.5010 st50 st
GN52.1-AN-13-1Magnet71.0010 st50 st
GN52.1-AN-16-1Magnet84.7010 st50 st
GN52.1-AN-20-1Magnet109.5010 st50 st
GN52.1-AN-25-1Magnet161.6010 st50 st
GN52.1-AN-32-1Magnet329.0010 st50 st
GN52.1-AN-40-1Magnet638.0010 st50 st
GN52.1-AN-50-1Magnet1136.0010 st50 st
GN52.1-AN-63-1Magnet2147.0010 st50 st
GN52.1-AN-6-2Magnet52.5010 st50 st
GN52.1-AN-8-2Magnet58.2010 st50 st
GN52.1-AN-10-2Magnet65.0010 st50 st
GN52.1-AN-13-2Magnet76.8010 st50 st
GN52.1-AN-16-2Magnet89.0010 st50 st
GN52.1-AN-20-2Magnet114.9010 st50 st
GN52.1-AN-25-2Magnet174.0010 st50 st
GN52.1-AN-32-2Magnet341.4010 st50 st
GN52.1-AN-40-2Magnet647.0010 st50 st
GN52.1-AN-50-2Magnet1469.0010 st50 st
GN52.1-AN-63-2Magnet2635.0010 st50 st
GN52.1-ND-4-1Magnet47.1010 st50 st
GN52.1-ND-5-1Magnet49.5010 st50 st
GN52.1-ND-6-1Magnet47.1010 st50 st
GN52.1-ND-8-1Magnet52.2010 st50 st
GN52.1-ND-10-1Magnet54.9010 st50 st
GN52.1-ND-13-1Magnet62.2010 st50 st
GN52.1-ND-16-1Magnet73.0010 st50 st
GN52.1-ND-20-1Magnet90.5010 st50 st
GN52.1-ND-25-1Magnet144.2010 st50 st
GN52.1-ND-32-1Magnet220.9010 st50 st
GN52.1-ND-6-2Magnet51.9010 st50 st
GN52.1-ND-8-2Magnet57.6010 st50 st
GN52.1-ND-10-2Magnet63.6010 st50 st
GN52.1-ND-13-2Magnet76.8010 st50 st
GN52.1-ND-16-2Magnet91.8010 st50 st
GN52.1-ND-20-2Magnet126.4010 st50 st
GN52.1-ND-25-2Magnet171.9010 st50 st
GN52.1-ND-32-2Magnet260.4010 st50 st
