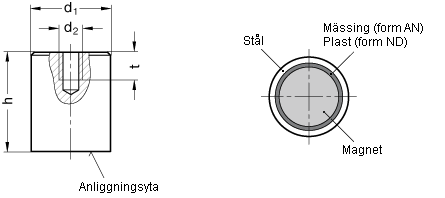

Magnet GN52.2
Magnet i AlNiCo eller NdFeB.
Form AN: AlNiCo (aluminium/nickel/kobolt). Max. temp = 450°C.
Form ND: NdFeB (neodym/järn/bor). Max. temp=80°C.
Avskärmning i förzinkat stål med invändig gänga.
Beställningsexempel: GN52.2-ND-20
| Häftkraft (N) \* | |||||
| d1±0,2 | d2 | h±0,2 | t | Form AN | Form ND |
| 6 | M 3 | 20 | 5 | 2 | 6 |
| 8 | M 3 | 20 | 5 | 4 | 12 |
| 10 | M 4 | 20 | 7 | 8,5 | 24 |
| 13 | M 4 | 20 | 7 | 12 | 60 |
| 16 | M 4 | 20 | 7 | 20 | 90 |
| 20 | M 6 | 25 | 9 | 40 | 135 |
| 25 | M 6 | 35 | 9 | 60 | 190 |
| 32 | M 8 | 40 | 12 | 160 | 340 |
| 40 | M 8 | 50 | 12 | 240 | 600 |
| 50 | M 10 | 60 | 12 | 400 | 900 |
| 63 | M 12 | 65 | 14 | 660 | 1300 |
| Mängdrabatt | ||||
|---|---|---|---|---|
| Art.nr | Benämning | Kr/st ex.moms | -10% | -20% |
| GN52.2-AN-6 | Magnet | 64.10 | 10 st | 50 st |
| GN52.2-AN-8 | Magnet | 68.70 | 10 st | 50 st |
| GN52.2-AN-10 | Magnet | 77.60 | 10 st | 50 st |
| GN52.2-AN-13 | Magnet | 87.80 | 10 st | 50 st |
| GN52.2-AN-16 | Magnet | 102.50 | 10 st | 50 st |
| GN52.2-AN-20 | Magnet | 126.80 | 10 st | 50 st |
| GN52.2-AN-25 | Magnet | 190.40 | 10 st | 50 st |
| GN52.2-AN-32 | Magnet | 384.00 | 10 st | 50 st |
| GN52.2-AN-40 | Magnet | 702.00 | 10 st | 50 st |
| GN52.2-AN-50 | Magnet | 1324.00 | 10 st | 50 st |
| GN52.2-AN-63 | Magnet | 2393.00 | 10 st | 50 st |
| GN52.2-ND-6 | Magnet | 46.00 | 10 st | 50 st |
| GN52.2-ND-8 | Magnet | 49.70 | 10 st | 50 st |
| GN52.2-ND-10 | Magnet | 53.60 | 10 st | 50 st |
| GN52.2-ND-13 | Magnet | 58.20 | 10 st | 50 st |
| GN52.2-ND-16 | Magnet | 61.70 | 10 st | 50 st |
| GN52.2-ND-20 | Magnet | 89.50 | 10 st | 50 st |
| GN52.2-ND-25 | Magnet | 147.20 | 10 st | 50 st |
| GN52.2-ND-32 | Magnet | 219.50 | 10 st | 50 st |
| GN52.2-ND-40 | Magnet | 459.00 | 10 st | 50 st |
| GN52.2-ND-50 | Magnet | 794.00 | 10 st | 50 st |
| GN52.2-ND-63 | Magnet | 1246.00 | 10 st | 50 st |
