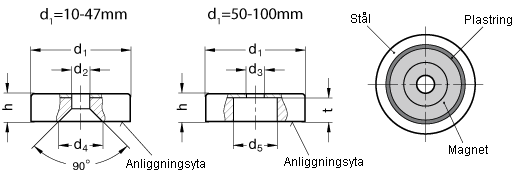

Magnet GN50.4 i hård ferrit, neodym eller SmCo med genomgående hål

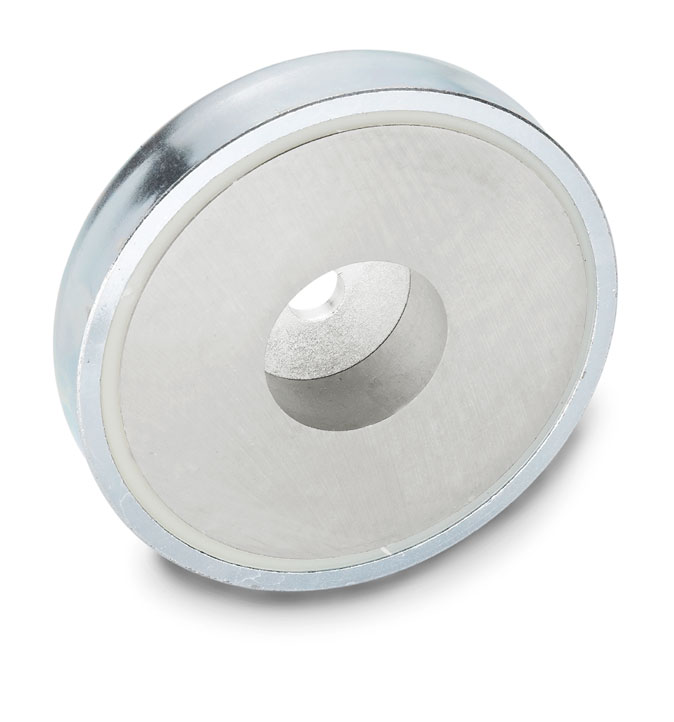

Magnet med avskärmning i förzinkat stål.

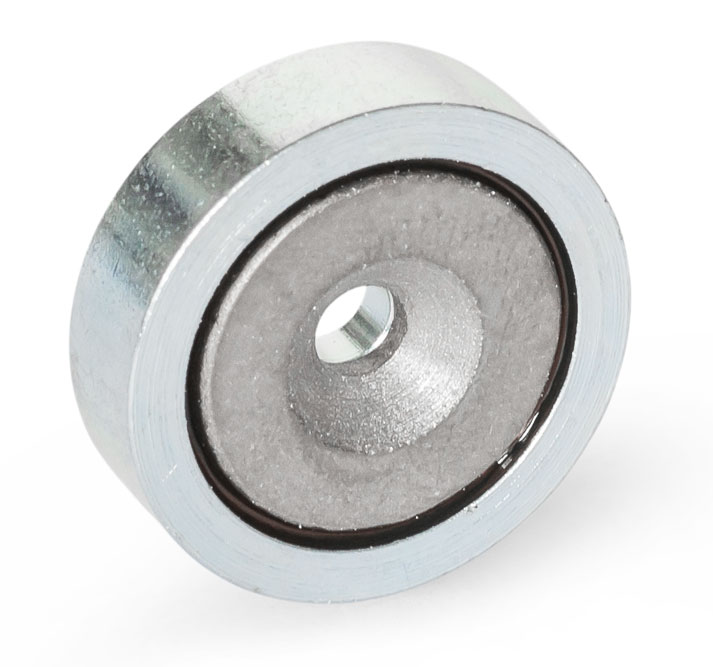

Genomgående hål.
För att bibehålla magnetens egenskaper skall en skruv tillverkad i icke-magnetiskt material användas.
Typ HF: Hård ferrit. Max. temp 200°C.
Typ ND: Neodym/järn/bor. Max. temp 80°C.
Typ SC: Samarium/kobolt. Max. temp 200°C.
Beställningsexempel: GN50.4-HF-50
CAD-filer
| d1 | Toleranser | h | Toleranser | d2 | d3 | d4 | d5 | t | Nominell häftkraft (N) | |||||||
| HF | ND / SC | HF | ND | SC | HF | ND / SC | HF | HF / SC | ND | HF | HF | HF | ND | SC | ||
| 10 | - | ±0.1 | 4.5 | - | ±0.1 | - | - | 2.6 | - | - | 5.2 | - | - | - | 19 | - |
| 13 | - | ±0.1 | 4.5 | - | ±0.1 | - | - | 3.5 | - | - | 6.6 | - | - | - | 40 | - |
| 16 | ±0.1 | ±0.1 | 4.5 | +0.2/-0.1 | ±0.1 | ±0.1 | 3.5 | 3.5 | - | 7 | 6.6 | - | - | 14 | 75 | 57 |
| 20 | ±0.1 | ±0.1 | 6 | +0.2/-0.1 | ±0.1 | ±0.1 | 4.3 | 4.5 | - | 10 | 9.3 | - | - | 27 | 105 | 81 |
| 25 | ±0.1 | ±0.1 | 7 | +0.3/-0.2 | ±0.2 | ±0.1 | 5.5 | 4.5 | - | 12 | 9 | - | - | 36 | 160 | 105 |
| 32 | ±0.1 | ±0.1 | 7 | +0.3/-0.2 | ±0.2 | ±0.1 | 5.5 | 5.5 | - | 12 | 11 | - | - | 72 | 310 | 235 |
| 40 | +0.2/-0.1 | ±0.1 | 8 | +0.4/-0.2 | ±0.2 | ±0.1 | 5.5 | 5.5 | - | 13 | 10.3 | - | - | 90 | 500 | 540 |
| 47 | - | +0.2/-0.1 | 9.2 | - | ±0.3 | - | - | 8.5 | - | - | 17.3 | - | - | - | 740 | - |
| 50 | +0.2/-0.1 | - | 10 | +0.5/-0.2 | - | - | - | - | 8.5 | - | - | 22 | 8.5 | 180 | - | - |
| 57 | +0.2/-0.1 | - | 11 | +0.5/-0.2 | - | - | - | - | 6.5 | - | - | 24 | 9 | 230 | - | - |
| 63 | +0.3/-0.1 | - | 14 | +0.5/-0.2 | - | - | - | - | 6.5 | - | - | 24 | 12 | 290 | - | - |
| 80 | +0.3/-0.1 | - | 10 | +0.5/-0.2 | - | - | - | - | 6.5 | - | - | 32 | 8 | 450 | - | - |
| 80 | +0.3/-0.1 | - | 18 | +0.5/-0.2 | - | - | - | - | 6.5 | - | - | 11.5 | 15 | 540 | - | - |
| 83 | +0.3/-0.1 | - | 18 | +0.5/-0.2 | - | - | - | - | 10.5 | - | - | 32 | 15 | 600 | - | - |
| 100 | +0.5/-0.1 | - | 22 | +0.5/-0.2 | - | - | - | - | 10.5 | - | - | 34 | 18 | 680 | - | - |
| Art.nr | Benämning | Kr/st ex.moms | Kr/st ink.moms | Mängdrabatt | |||
|---|---|---|---|---|---|---|---|
| -10% | -20% | ||||||
| GN50.4-HF-16 | Magnet, inv. gänga, hård ferrit | 29,90 kr | 37,38 kr | 10 st | 50 st | ||
| GN50.4-HF-20 | Magnet, inv. gänga, hård ferrit | 29,30 kr | 36,63 kr | 10 st | 50 st | ||
| GN50.4-HF-25 | Magnet, inv. gänga, hård ferrit | 32,80 kr | 41,00 kr | 10 st | 50 st | ||
| GN50.4-HF-32 | Magnet, inv. gänga, hård ferrit | 37,50 kr | 46,88 kr | 10 st | 50 st | ||
| GN50.4-HF-40 | Magnet, inv. gänga, hård ferrit | 50,20 kr | 62,75 kr | 10 st | 50 st | ||
| GN50.4-HF-50 | Magnet, centrumhål, hård ferrit | 63,40 kr | 79,25 kr | 10 st | 50 st | ||
| GN50.4-HF-63 | Magnet, inv. gänga, hård ferrit | 117,00 kr | 146,25 kr | 10 st | 50 st | ||
| GN50.4-HF-80-18 | Magnet, inv. gänga, hård ferrit | 218,30 kr | 272,88 kr | 10 st | 50 st | ||
| GN50.4-HF-100 | Magnet, inv. gänga, hård ferrit | 520,00 kr | 650,00 kr | 10 st | 50 st | ||
| GN50.4-HF-57 | Magnet, centrumhål, hård ferrit | 86,70 kr | 108,38 kr | 10 st | 50 st | ||
| GN50.4-HF-80-10 | Magnet, centrumhål, hård ferrit | 127,50 kr | 159,38 kr | — | — | ||
| GN50.4-HF-83 | Magnet, centrumhål, hård ferrit | 220,00 kr | 275,00 kr | — | — | ||
| GN50.4-ND-10 | Magnet, centrumhål, neodym | 38,00 kr | 47,50 kr | 10 st | 50 st | ||
| GN50.4-ND-13 | Magnet, centrumhål, neodym | 41,10 kr | 51,38 kr | 10 st | 50 st | ||
| GN50.4-ND-16 | Magnet, centrumhål, neodym | 47,90 kr | 59,88 kr | 10 st | 50 st | ||
| GN50.4-ND-20 | Magnet, centrumhål, neodym | 65,50 kr | 81,88 kr | 10 st | 50 st | ||
| GN50.4-ND-25 | Magnet, centrumhål, neodym | 85,90 kr | 107,38 kr | 10 st | 50 st | ||
| GN50.4-ND-32 | Magnet, centrumhål, neodym | 133,00 kr | 166,25 kr | 10 st | 50 st | ||
| GN50.4-ND-40 | Magnet, centrumhål, hård ferrit | 190,50 kr | 238,13 kr | 10 st | 50 st | ||
| GN50.4-ND-47 | Magnet, centrumhål, hård ferrit | 333,00 kr | 416,25 kr | 10 st | 50 st | ||
| GN50.4-SC-16 | Magnet, centrumhål, SmCo | 157,50 kr | 196,88 kr | 10 st | 50 st | ||
| GN50.4-SC-20 | Magnet, centrumhål, SmCo | 185,50 kr | 231,88 kr | 10 st | 50 st | ||
| GN50.4-SC-25 | Magnet, centrumhål, SmCo | 225,00 kr | 281,25 kr | 10 st | 50 st | ||
| GN50.4-SC-32 | Magnet, centrumhål, SmCo | 273,00 kr | 341,25 kr | 10 st | 50 st | ||
| GN50.4-SC-40 | Magnet, centrumhål, SmCo | 455,00 kr | 568,75 kr | 10 st | 50 st | ||
