Saxpinnar / saxsprintar DIN94 i förzinkat stål

Saxpinnar/saxsprintar i förzinkat stål enligt DIN 94.

Beställningsexempel: SP 5X50

CAD-filer

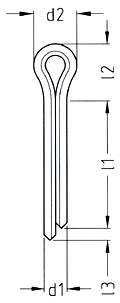

Ritning saxpinne DIN 94 förzinkad - ritning
Best.mått(avsedd för hål med nedanst. diameter)d1 mind1 maxl1l2≈l3d2
1,20,91122531,31,7
1,61,31,4121620323,21,32,4
21,71,8162025324041,33,2
2,52,12,316202532405051,34
3,22,72,91620253240506,425,1
43,53,720253240506380826,5
54,44,632405063801028
6,35,75,94050638010012,6210,3
87,37,5638010014016213,1
109,39,580100125140203,216,6
Mängdrabatt
Art.nrBenämningKr/st ex.moms-30%
SP FZB 1,2X12Saxpinne, FZB, DIN940.201000 st
SP FZB 1,2X25Saxpinne, FZB, DIN940.201000 st
SP FZB 1,6X12Saxpinne, FZB, DIN940.201000 st
SP FZB 1,6X16Saxpinne, FZB, DIN940.201000 st
SP FZB 1,6X20Saxpinne, FZB, DIN940.201000 st
SP FZB 1,6X32Saxpinne, FZB, DIN940.201000 st
SP FZB 2X12Saxpinne, FZB, DIN940.201000 st
SP FZB 2X16Saxpinne, FZB, DIN940.201000 st
SP FZB 2X20Saxpinne, FZB, DIN940.201000 st
SP FZB 2X25Saxpinne, FZB, DIN940.201000 st
SP FZB 2X32Saxpinne, FZB, DIN940.231000 st
SP FZB 2X40Saxpinne, FZB, DIN940.231000 st
SP FZB 2,5X16Saxpinne, FZB, DIN940.231000 st
SP FZB 2,5X20Saxpinne, FZB, DIN940.231000 st
SP FZB 2,5X25Saxpinne, FZB, DIN940.231000 st
SP FZB 2,5X32Saxpinne, FZB, DIN940.231000 st
SP FZB 2,5X40Saxpinne, FZB, DIN940.231000 st
SP FZB 2,5X50Saxpinne, FZB, DIN940.231000 st
SP FZB 3,2X16Saxpinne, FZB, DIN940.231000 st
SP FZB 3,2X20Saxpinne, FZB, DIN940.231000 st
SP FZB 3,2X25Saxpinne, FZB, DIN940.231000 st
SP FZB 3,2X32Saxpinne, FZB, DIN940.271000 st
SP FZB 3,2X40Saxpinne, FZB, DIN940.271000 st
SP FZB 3,2X50Saxpinne, FZB, DIN940.271000 st
SP FZB 4X20Saxpinne, FZB, DIN940.351000 st
SP FZB 4X25Saxpinne, FZB, DIN940.351000 st
SP FZB 4X32Saxpinne, FZB, DIN940.431000 st
SP FZB 4X40Saxpinne, FZB, DIN940.461000 st
SP FZB 4X50Saxpinne, FZB, DIN940.501000 st
SP FZB 4X63Saxpinne, FZB, DIN940.621000 st
SP FZB 4X80Saxpinne, FZB, DIN940.781000 st
SP FZB 5X32Saxpinne, FZB, DIN940.59500 st
SP FZB 5X40Saxpinne, FZB, DIN940.70500 st
SP FZB 5X50Saxpinne, FZB, DIN940.85500 st
SP FZB 5X63Saxpinne, FZB, DIN941.09500 st
SP FZB 5X80Saxpinne, FZB, DIN941.32500 st
SP FZB 6,3X40Saxpinne, FZB, DIN941.05250 st
SP FZB 6,3X50Saxpinne, FZB, DIN941.28250 st
SP FZB 6,3X63Saxpinne, FZB, DIN941.51250 st
SP FZB 6,3X80Saxpinne, FZB, DIN941.87250 st
SP FZB 6,3X100Saxpinne, FZB, DIN942.29250 st
SP FZB 8X63Saxpinne, FZB, DIN942.99100 st
SP FZB 8X80Saxpinne, FZB, DIN943.57100 st
SP FZB 8X100Saxpinne, FZB, DIN944.27100 st
SP FZB 8X140Saxpinne, FZB, DIN945.75100 st
