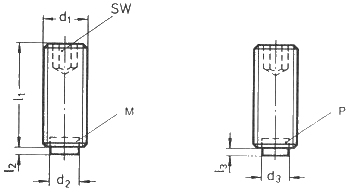

Tryckskruv GN913.3 (brunerad) & GN913.5 (rostfri)
Tryckskruv i brunerat stål.
Form M med stift i mässing.
Form P med stift i polyacetal.
Beställningsexempel GN913.3 P M8X32
| d1 | l1 | d2 Form M | d3 Form P | l2 Form M | l3 Form P | sw | |||||||
| M4 | 6 * | 8 | 10 | 12 | 16 | 20 | 2,5 | 2 | 0,5 | 1 | 2 | ||
| M5 | 8 | 10 | 12 | 16 | 20 | 25 | 3 | 3 | 0,5 | 1 | 2,5 | ||
| M6 | 10 | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 4 | 3,5 | 1 | 1,3 | 3 |
| M8 | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 6 | 5 | 1,5 | 1,6 | 4 |
| M10 | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 8 | 6,5 | 2 | 1,9 | 5 |
| M12 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 | 10 | 8 | 2 | 2,1 | 6 |
| Mängdrabatt | ||||
|---|---|---|---|---|
| Art.nr | Benämning | Kr/st ex.moms | -10% | -20% |
| GN913.3 P M4X6 | Tryckskruv m. delrintapp | 13.90 | 50 st | 250 st |
| GN913.3 P M4X8 | Tryckskruv m. delrintapp | 13.90 | 50 st | 250 st |
| GN913.3 P M4X10 | Tryckskruv m. delrintapp | 13.80 | 50 st | 250 st |
| GN913.3 P M4X12 | Tryckskruv m. delrintapp | 14.20 | 50 st | 250 st |
| GN913.3 P M4X16 | Tryckskruv m. delrintapp | 14.50 | 50 st | 250 st |
| GN913.3 P M4X20 | Tryckskruv m. delrintapp | 14.50 | 50 st | 250 st |
| GN913.3 P M5X8 | Tryckskruv m. delrintapp | 13.80 | 50 st | 250 st |
| GN913.3 P M5X10 | Tryckskruv m. delrintapp | 13.80 | 50 st | 250 st |
| GN913.3 P M5X12 | Tryckskruv m. delrintapp | 13.80 | 50 st | 250 st |
| GN913.3 P M5X16 | Tryckskruv m. delrintapp | 14.50 | 50 st | 250 st |
| GN913.3 P M5X20 | Tryckskruv m. delrintapp | 14.50 | 50 st | 250 st |
| GN913.3 P M5X25 | Tryckskruv m. delrintapp | 14.90 | 50 st | 250 st |
| GN913.3 P M6X10 | Tryckskruv m. delrintapp | 13.60 | 50 st | 250 st |
| GN913.3 P M6X12 | Tryckskruv m. delrintapp | 13.60 | 50 st | 250 st |
| GN913.3 P M6X16 | Tryckskruv m. delrintapp | 13.80 | 50 st | 250 st |
| GN913.3 P M6X20 | Tryckskruv m. delrintapp | 13.80 | 50 st | 250 st |
| GN913.3 P M6X25 | Tryckskruv m. delrintapp | 14.50 | 50 st | 250 st |
| GN913.3 P M6X32 | Tryckskruv m. delrintapp | 16.50 | 50 st | 250 st |
| GN913.3 P M6X40 | Tryckskruv m. delrintapp | 17.40 | 50 st | 250 st |
| GN913.3 P M6X50 | Tryckskruv m. delrintapp | 19.60 | 50 st | 250 st |
| GN913.3 P M8X12 | Tryckskruv m. delrintapp | 14.90 | 50 st | 250 st |
| GN913.3 P M8X16 | Tryckskruv m. delrintapp | 14.90 | 50 st | 250 st |
| GN913.3 P M8X20 | Tryckskruv m. delrintapp | 15.10 | 50 st | 250 st |
| GN913.3 P M8X25 | Tryckskruv m. delrintapp | 16.00 | 50 st | 250 st |
| GN913.3 P M8X32 | Tryckskruv m. delrintapp | 17.40 | 50 st | 250 st |
| GN913.3 P M8X40 | Tryckskruv m. delrintapp | 19.70 | 50 st | 250 st |
| GN913.3 P M8X50 | Tryckskruv m. delrintapp | 22.10 | 50 st | 250 st |
| GN913.3 P M8X63 | Tryckskruv m. delrintapp | 24.60 | 50 st | 250 st |
| GN913.3 P M10X16 | Tryckskruv m. delrintapp | 19.70 | 50 st | 250 st |
| GN913.3 P M10X20 | Tryckskruv m. delrintapp | 20.40 | 50 st | 250 st |
| GN913.3 P M10X25 | Tryckskruv m. delrintapp | 21.60 | 50 st | 250 st |
| GN913.3 P M10X32 | Tryckskruv m. delrintapp | 22.30 | 50 st | 250 st |
| GN913.3 P M10X40 | Tryckskruv m. delrintapp | 25.30 | 50 st | 250 st |
| GN913.3 P M10X50 | Tryckskruv m. delrintapp | 29.30 | 50 st | 250 st |
| GN913.3 P M10X63 | Tryckskruv m. delrintapp | 30.40 | 50 st | 250 st |
| GN913.3 P M10X80 | Tryckskruv m. delrintapp | 36.00 | 50 st | 250 st |
| GN913.3 P M12X20 | Tryckskruv m. delrintapp | 22.00 | 50 st | 250 st |
| GN913.3 P M12X25 | Tryckskruv m. delrintapp | 22.80 | 50 st | 250 st |
| GN913.3 P M12X32 | Tryckskruv m. delrintapp | 24.80 | 50 st | 250 st |
| GN913.3 P M12X40 | Tryckskruv m. delrintapp | 27.90 | 50 st | 250 st |
| GN913.3 P M12X50 | Tryckskruv m. delrintapp | 32.30 | 50 st | 250 st |
| GN913.3 P M12X63 | Tryckskruv m. delrintapp | 37.80 | 50 st | 250 st |
| GN913.3 P M12X80 | Tryckskruv m. delrintapp | 43.80 | 50 st | 250 st |
| GN913.3 P M12X100 | Tryckskruv m. delrintapp | 47.50 | 50 st | 250 st |
| GN913.3 M M4X6 | Tryckskruv m. mässingstapp | 10.30 | 50 st | 250 st |
| GN913.3 M M4X8 | Tryckskruv m. mässingstapp | 10.80 | 50 st | 250 st |
| GN913.3 M M4X10 | Tryckskruv m. mässingstapp | 10.80 | 50 st | 250 st |
| GN913.3 M M4X12 | Tryckskruv m. mässingstapp | 11.20 | 50 st | 250 st |
| GN913.3 M M4X16 | Tryckskruv m. mässingstapp | 11.20 | 50 st | 250 st |
| GN913.3 M M4X20 | Tryckskruv m. mässingstapp | 11.20 | 50 st | 250 st |
| GN913.3 M M5X8 | Tryckskruv m. mässingstapp | 11.30 | 50 st | 250 st |
| GN913.3 M M5X10 | Tryckskruv m. mässingstapp | 11.10 | 50 st | 250 st |
| GN913.3 M M5X12 | Tryckskruv m. mässingstapp | 11.00 | 50 st | 250 st |
| GN913.3 M M5X16 | Tryckskruv m. mässingstapp | 11.60 | 50 st | 250 st |
| GN913.3 M M5X20 | Tryckskruv m. mässingstapp | 11.70 | 50 st | 250 st |
| GN913.3 M M5X25 | Tryckskruv m. mässingstapp | 12.10 | 50 st | 250 st |
| GN913.3 M M6X10 | Tryckskruv m. mässingstapp | 11.60 | 50 st | 250 st |
| GN913.3 M M6X12 | Tryckskruv m. mässingstapp | 11.60 | 50 st | 250 st |
| GN913.3 M M6X16 | Tryckskruv m. mässingstapp | 11.80 | 50 st | 250 st |
| GN913.3 M M6X20 | Tryckskruv m. mässingstapp | 12.10 | 50 st | 250 st |
| GN913.3 M M6X25 | Tryckskruv m. mässingstapp | 12.40 | 50 st | 250 st |
| GN913.3 M M6X32 | Tryckskruv m. mässingstapp | 14.60 | 50 st | 250 st |
| GN913.3 M M6X40 | Tryckskruv m. mässingstapp | 15.30 | 50 st | 250 st |
| GN913.3 M M6X50 | Tryckskruv m. mässingstapp | 17.30 | 50 st | 250 st |
| GN913.3 M M8X12 | Tryckskruv m. mässingstapp | 12.70 | 50 st | 250 st |
| GN913.3 M M8X16 | Tryckskruv m. mässingstapp | 12.70 | 50 st | 250 st |
| GN913.3 M M8X20 | Tryckskruv m. mässingstapp | 12.90 | 50 st | 250 st |
| GN913.3 M M8X25 | Tryckskruv m. mässingstapp | 13.50 | 50 st | 250 st |
| GN913.3 M M8X32 | Tryckskruv m. mässingstapp | 15.00 | 50 st | 250 st |
| GN913.3 M M8X40 | Tryckskruv m. mässingstapp | 17.70 | 50 st | 250 st |
| GN913.3 M M8X50 | Tryckskruv m. mässingstapp | 20.20 | 50 st | 250 st |
| GN913.3 M M10X16 | Tryckskruv m. mässingstapp | 18.90 | 50 st | 250 st |
| GN913.3 M M10X20 | Tryckskruv m. mässingstapp | 19.30 | 50 st | 250 st |
| GN913.3 M M10X25 | Tryckskruv m. mässingstapp | 21.00 | 50 st | 250 st |
| GN913.3 M M10X32 | Tryckskruv m. mässingstapp | 20.50 | 50 st | 250 st |
| GN913.3 M M10X40 | Tryckskruv m. mässingstapp | 23.50 | 50 st | 250 st |
| GN913.3 M M10X50 | Tryckskruv m. mässingstapp | 27.50 | 50 st | 250 st |
| GN913.3 M M10X63 | Tryckskruv m. mässingstapp | 29.10 | 50 st | 250 st |
| GN913.3 M M10X80 | Tryckskruv m. mässingstapp | 34.90 | 50 st | 250 st |
| GN913.3 M M12X20 | Tryckskruv m. mässingstapp | 20.10 | 50 st | 250 st |
| GN913.3 M M12X25 | Tryckskruv m. mässingstapp | 21.40 | 50 st | 250 st |
| GN913.3 M M12X32 | Tryckskruv m. mässingstapp | 23.10 | 50 st | 250 st |
| GN913.3 M M12X40 | Tryckskruv m. mässingstapp | 27.00 | 50 st | 250 st |
| GN913.3 M M12X50 | Tryckskruv m. mässingstapp | 31.70 | 50 st | 250 st |
| GN913.3 M M12X63 | Tryckskruv m. mässingstapp | 36.70 | 50 st | 250 st |
| GN913.3 M M12X80 | Tryckskruv m. mässingstapp | 40.40 | 50 st | 250 st |
| GN913.3 M M12X100 | Tryckskruv m. mässingstapp | 50.30 | 50 st | 250 st |
