Kort passkruv GN732.1 i brunerat stål

Kort passkruv i brunerat stål.
Hållfasthetsklass 5.8.
För toleranser, se dimensionstabell nedan.

Beställningsexempel: GN732.1 8X12/M6

CAD-filer

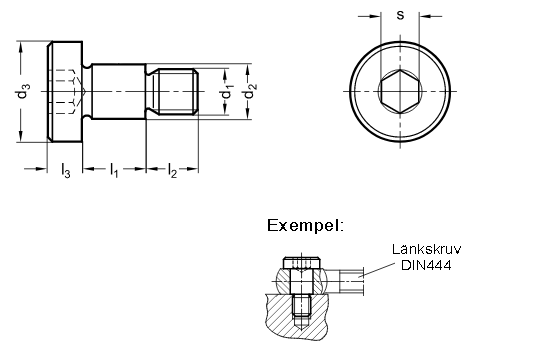

Ritning: kort passbult
d1d2l1 +0,20/+0,13d3l2l3s
M 56 \-0,03/-0,055678\-\-\-12733
M 68 \-0,05/-0,08568910121314844
M 810 \-0,05/-0,08810121415\-\-161155
M 1012 \-0,05/-0,0812141617\-\-\-191366
M 1214 \-0,05/-0,08141618\-\-\-\-221688
Mängdrabatt
Art.nrBenämningKr/st ex.moms-10%-20%
GN732.1 6X5/M5Passkruv, kort 5.829.9010 st50 st
GN732.1 6X6/M5Passkruv, kort 5.830.4010 st50 st
GN732.1 6X7/M5Passkruv, kort 5.830.9010 st50 st
GN732.1 6X8/M5Passkruv, kort 5.831.4010 st50 st
GN732.1 8X5/M6Passkruv, kort 5.831.4010 st50 st
GN732.1 8X6/M6Passkruv, kort 5.830.8010 st50 st
GN732.1 8X8/M6Passkruv, kort 5.832.0010 st50 st
GN732.1 8X9/M6Passkruv, kort 5.832.6010 st50 st
GN732.1 8X10/M6Passkruv, kort 5.833.6010 st50 st
GN732.1 8X12/M6Passkruv, kort 5.836.6010 st50 st
GN732.1 8X13/M6Passkruv, kort 5.838.1010 st50 st
GN732.1 10X8/M8Passkruv, kort 5.842.7010 st50 st
GN732.1 10X10/M8Passkruv, kort 5.842.4010 st50 st
GN732.1 10X12/M8Passkruv, kort 5.842.7010 st50 st
GN732.1 10X14/M8Passkruv, kort 5.846.0010 st50 st
GN732.1 10X15/M8Passkruv, kort 5.845.7010 st50 st
GN732.1 12X12/M10Passkruv, kort 5.859.2010 st50 st
GN732.1 12X14/M10Passkruv, kort 5.861.0010 st50 st
GN732.1 12X16/M10Passkruv, kort 5.862.7010 st50 st
GN732.1 12X17/M10Passkruv, kort 5.865.5010 st50 st
GN732.1 14X14/M12Passkruv, kort 5.891.3010 st50 st
GN732.1 14X16/M12Passkruv, kort 5.891.9010 st50 st
GN732.1 14X18/M12Passkruv, kort 5.898.5010 st50 st
