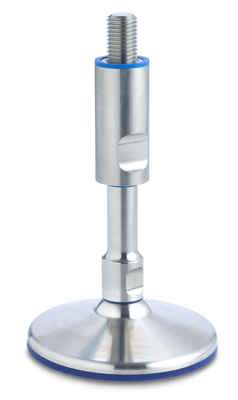

Rostfri maskinfot GN20 A i hygienutförande
Rostfri maskinfot, lämplig för exempelvis livsmedelsindustrin, läkemedelsindustrin m.m.
Tätningsringar enligt ritning nedan.
Beställningsexempel: GN20-60-M16-175-A
CAD-filer
| d1 | d2 | l1 | d3 | l2 | l3 | sw1 | sw2 | Max. statisk belastning (N) * | |
| 60 | M 12 | 175 | 225 | 25 | 14 | 35 | 17 | 19 | 16,000 |
| 60 | M 16 | 175 | 225 | 28 | 19 | 35 | 18 | 22 | 30,000 |
| 80 | M 12 | 175 | 225 | 25 | 14 | 35 | 17 | 19 | 16,000 |
| 80 | M 16 | 175 | 225 | 28 | 19 | 35 | 18 | 22 | 30,000 |
| 80 | M 20 | 185 | 235 | 32 | 24 | 35 | 24 | 27 | 47,000 |
| 80 | M 24 | 185 | 235 | 36 | 29 | 35 | 24 | 30 | 67,000 |
| 100 | M 16 | 175 | 225 | 28 | 19 | 35 | 18 | 22 | 30,000 |
| 100 | M 20 | 185 | 235 | 32 | 24 | 35 | 24 | 27 | 47,000 |
| 100 | M 24 | 185 | 235 | 36 | 29 | 35 | 24 | 30 | 67,000 |
| 120 | M 16 | 175 | 225 | 28 | 19 | 35 | 18 | 22 | 30,000 |
| 120 | M 20 | 185 | 235 | 32 | 24 | 35 | 24 | 27 | 47,000 |
| 120 | M 24 | 185 | 235 | 36 | 29 | 35 | 24 | 30 | 67,000 |
| Art.nr | Benämning | Kr/st ex.moms | Kr/st ink.moms | |||
|---|---|---|---|---|---|---|
| GN20-60-M12-175-A | Maskinfot, rostfritt stål, hygiendesign | 1 092,00 kr | 1 365,00 kr | |||
| GN20-60-M12-225-A | Maskinfot, rostfritt stål, hygiendesign | 1 120,00 kr | 1 400,00 kr | |||
| GN20-60-M16-175-A | Maskinfot, rostfritt stål, hygiendesign | 1 154,00 kr | 1 442,50 kr | |||
| GN20-60-M16-225-A | Maskinfot, rostfritt stål, hygiendesign | 1 189,00 kr | 1 486,25 kr | |||
| GN20-80-M12-175-A | Maskinfot, rostfritt stål, hygiendesign | 1 163,00 kr | 1 453,75 kr | |||
| GN20-80-M12-225-A | Maskinfot, rostfritt stål, hygiendesign | 1 157,00 kr | 1 446,25 kr | |||
| GN20-80-M16-175-A | Maskinfot, rostfritt stål, hygiendesign | 1 173,00 kr | 1 466,25 kr | |||
| GN20-80-M16-225-A | Maskinfot, rostfritt stål, hygiendesign | 1 241,00 kr | 1 551,25 kr | |||
| GN20-80-M20-185-A | Maskinfot, rostfritt stål, hygiendesign | 1 255,00 kr | 1 568,75 kr | |||
| GN20-80-M20-235-A | Maskinfot, rostfritt stål, hygiendesign | 1 335,00 kr | 1 668,75 kr | |||
| GN20-80-M24-185-A | Maskinfot, rostfritt stål, hygiendesign | 1 308,00 kr | 1 635,00 kr | |||
| GN20-80-M24-235-A | Maskinfot, rostfritt stål, hygiendesign | 1 376,00 kr | 1 720,00 kr | |||
| GN20-100-M16-175-A | Maskinfot, rostfritt stål, hygiendesign | 1 313,00 kr | 1 641,25 kr | |||
| GN20-100-M16-225-A | Maskinfot, rostfritt stål, hygiendesign | 1 371,00 kr | 1 713,75 kr | |||
| GN20-100-M20-185-A | Maskinfot, rostfritt stål, hygiendesign | 1 394,00 kr | 1 742,50 kr | |||
| GN20-100-M20-235-A | Maskinfot, rostfritt stål, hygiendesign | 1 473,00 kr | 1 841,25 kr | |||
| GN20-100-M24-185-A | Maskinfot, rostfritt stål, hygiendesign | 1 442,00 kr | 1 802,50 kr | |||
| GN20-100-M24-235-A | Maskinfot, rostfritt stål, hygiendesign | 1 514,00 kr | 1 892,50 kr | |||
| GN20-120-M16-175-A | Maskinfot, rostfritt stål, hygiendesign | 1 507,00 kr | 1 883,75 kr | |||
| GN20-120-M16-225-A | Maskinfot, rostfritt stål, hygiendesign | 1 559,00 kr | 1 948,75 kr | |||
| GN20-120-M20-185-A | Maskinfot, rostfritt stål, hygiendesign | 1 588,00 kr | 1 985,00 kr | |||
| GN20-120-M20-235-A | Maskinfot, rostfritt stål, hygiendesign | 1 665,00 kr | 2 081,25 kr | |||
| GN20-120-M24-185-A | Maskinfot, rostfritt stål, hygiendesign | 1 637,00 kr | 2 046,25 kr | |||
| GN20-120-M24-235-A | Maskinfot, rostfritt stål, hygiendesign | 1 707,00 kr | 2 133,75 kr | |||
Scrolla i sidled för fler kolumner
