Delbar rörkoppling GN195 i aluminium för rundrör eller fyrkantsrör, delbar
Delbar rörkoppling i svartlackerad (matt struktur) eller blästrad aluminium för rundrör eller fyrkantsrör.

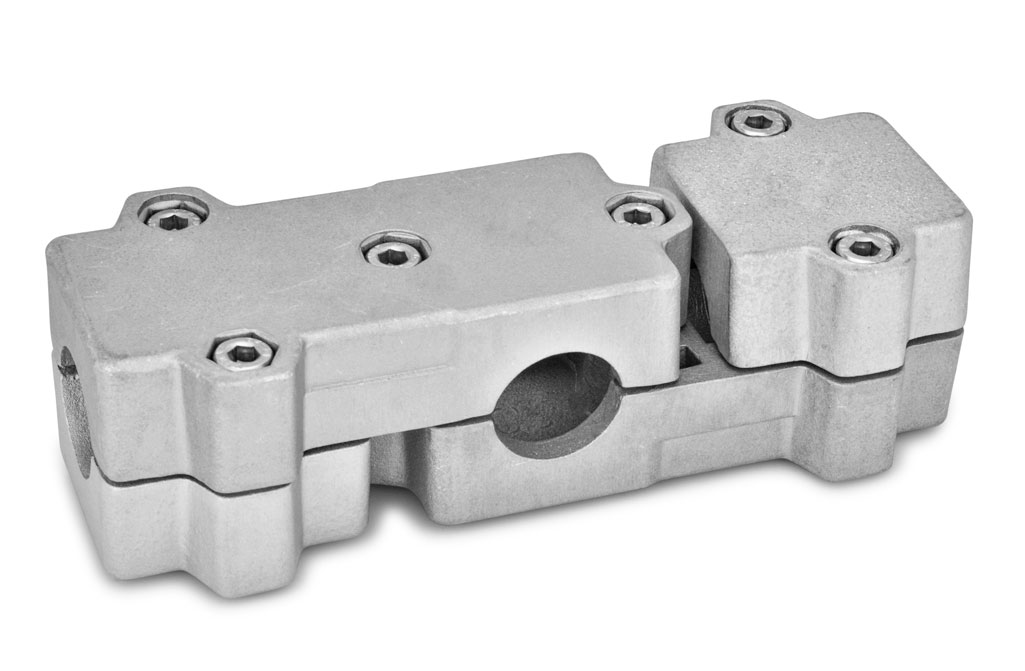

B: runt rör.

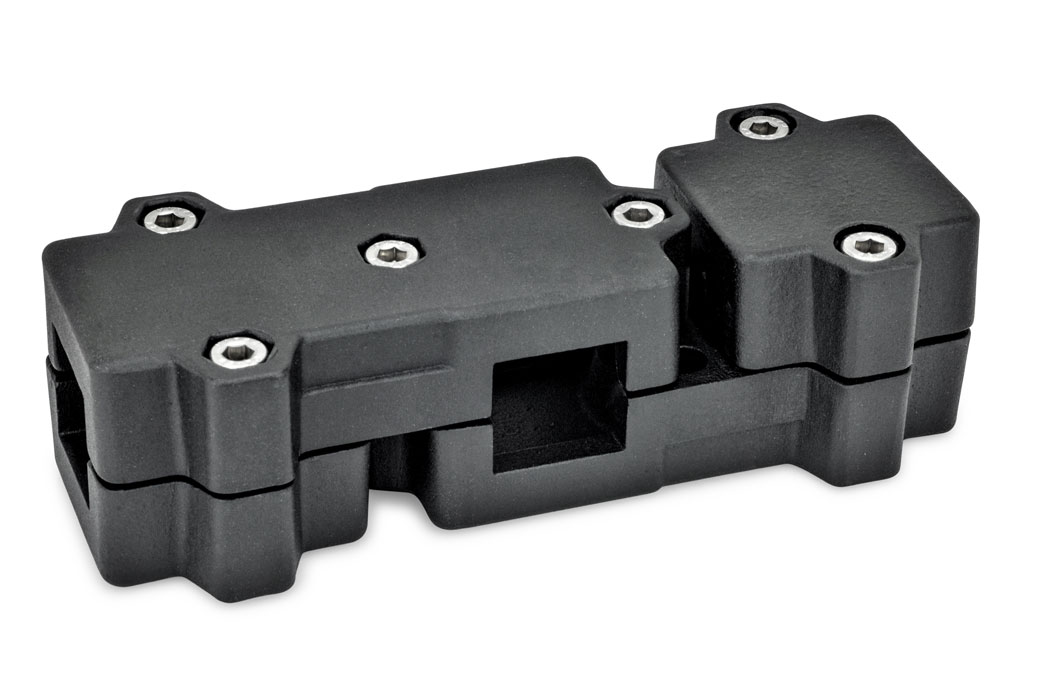

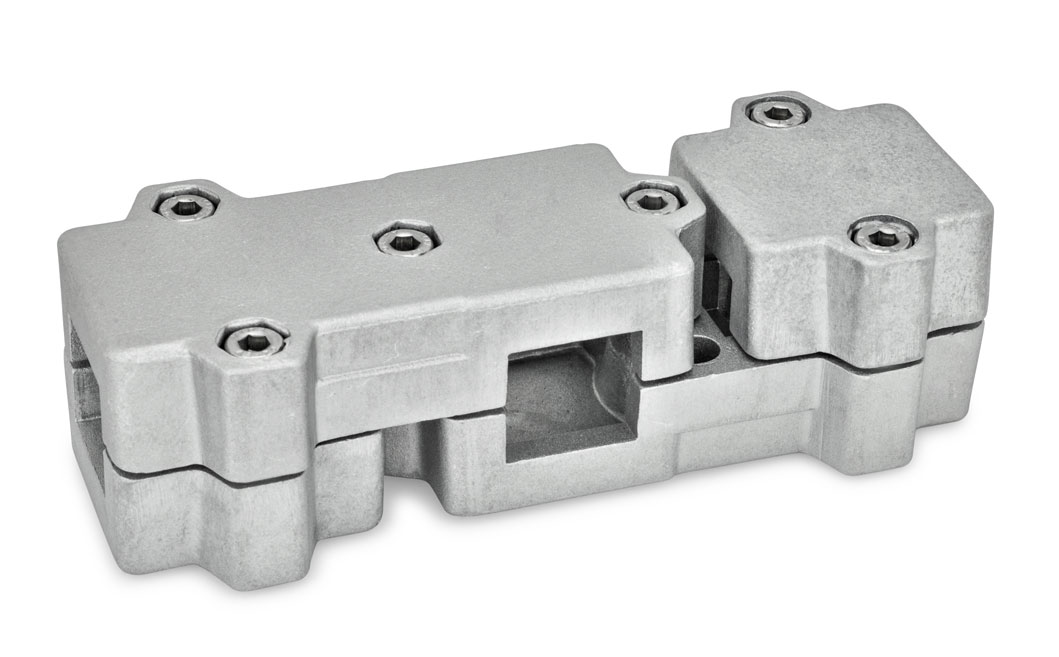

V: fyrkantsrör.
SW: svart (pulverlackerad).
BL: blästrad.
Beställningsexempel: GN195-V35-60-2-SW
CAD-filer
| d | s | k | l1 | l2 | l3 | m | z | l4 (passande låsspak GN911) |
| 20 | 20 | 50 | 172 | 68 | 46 | 86 | M8X35 | 63 / 78 |
| 25 | 25 | 50 | 172 | 68 | 46 | 86 | M8X35 | 63 / 78 |
| 30 | 30 | 50 | 172 | 68 | 46 | 86 | M8X35 | 63 / 78 |
| 30 | 30 | 60 | 203 | 79 | 59 | 101,5 | M8X50 | 63 / 78 |
| 32 | - | 60 | 203 | 79 | 59 | 101,5 | M8X50 | 63 / 78 |
| 35 | 35 | 60 | 203 | 79 | 59 | 101,5 | M8X50 | 63 / 78 |
| 40 | 40 | 60 | 203 | 79 | 59 | 101,5 | M8X50 | 63 / 78 |
| 40 | 40 | 76 | 254 | 98 | 70 | 127 | M10X60 | 78 / 92 |
| 42 | - | 76 | 254 | 98 | 70 | 127 | M10X60 | 78 / 92 |
| 45 | 45 | 76 | 254 | 98 | 70 | 127 | M10X60 | 78 / 92 |
| 48 | - | 76 | 254 | 98 | 70 | 127 | M10X60 | 78 / 92 |
| 50 | 50 | 76 | 254 | 98 | 70 | 127 | M10X60 | 78 / 92 |
| Art.nr | Benämning | Kr/st ex.moms | Kr/st ink.moms | |||
|---|---|---|---|---|---|---|
| GN195-B20-50-2-BL | T-koppling, aluminium, delbar, blästrad | 593,00 kr | 741,25 kr | |||
| GN195-B20-50-2-SW | T-koppling, aluminium, delbar, svart | 594,00 kr | 742,50 kr | |||
| GN195-B25-50-2-BL | T-koppling, aluminium, delbar, blästrad | 593,00 kr | 741,25 kr | |||
| GN195-B25-50-2-SW | T-koppling, aluminium, delbar, svart | 594,00 kr | 742,50 kr | |||
| GN195-B30-50-2-BL | T-koppling, aluminium, delbar, blästrad | 593,00 kr | 741,25 kr | |||
| GN195-B30-50-2-SW | T-koppling, aluminium, delbar, svart | 594,00 kr | 742,50 kr | |||
| GN195-B30-60-2-BL | T-koppling, aluminium, delbar, blästrad | 783,00 kr | 978,75 kr | |||
| GN195-B30-60-2-SW | T-koppling, aluminium, delbar, svart | 784,00 kr | 980,00 kr | |||
| GN195-B32-60-2-BL | T-koppling, aluminium, delbar, blästrad | 783,00 kr | 978,75 kr | |||
| GN195-B32-60-2-SW | T-koppling, aluminium, delbar, svart | 784,00 kr | 980,00 kr | |||
| GN195-B35-60-2-BL | T-koppling, aluminium, delbar, blästrad | 783,00 kr | 978,75 kr | |||
| GN195-B35-60-2-SW | T-koppling, aluminium, delbar, svart | 784,00 kr | 980,00 kr | |||
| GN195-B40-60-2-BL | T-koppling, aluminium, delbar, blästrad | 783,00 kr | 978,75 kr | |||
| GN195-B40-60-2-SW | T-koppling, aluminium, delbar, svart | 784,00 kr | 980,00 kr | |||
| GN195-B40-76-2-BL | T-koppling, aluminium, delbar, blästrad | 883,00 kr | 1 103,75 kr | |||
| GN195-B40-76-2-SW | T-koppling, aluminium, delbar, svart | 880,00 kr | 1 100,00 kr | |||
| GN195-B42-76-2-BL | T-koppling, aluminium, delbar, blästrad | 879,00 kr | 1 098,75 kr | |||
| GN195-B42-76-2-SW | T-koppling, aluminium, delbar, svart | 880,00 kr | 1 100,00 kr | |||
| GN195-B45-76-2-BL | T-koppling, aluminium, delbar, blästrad | 879,00 kr | 1 098,75 kr | |||
| GN195-B45-76-2-SW | T-koppling, aluminium, delbar, svart | 880,00 kr | 1 100,00 kr | |||
| GN195-B48-76-2-BL | T-koppling, aluminium, delbar, blästrad | 879,00 kr | 1 098,75 kr | |||
| GN195-B48-76-2-SW | T-koppling, aluminium, delbar, svart | 880,00 kr | 1 100,00 kr | |||
| GN195-B50-76-2-BL | T-koppling, aluminium, delbar, blästrad | 876,00 kr | 1 095,00 kr | |||
| GN195-B50-76-2-SW | T-koppling, aluminium, delbar, svart | 880,00 kr | 1 100,00 kr | |||
| GN195-V20-50-2-BL | T-koppling, aluminium, delbar, blästrad | 590,00 kr | 737,50 kr | |||
| GN195-V20-50-2-SW | T-koppling, aluminium, delbar, svart | 594,00 kr | 742,50 kr | |||
| GN195-V25-50-2-BL | T-koppling, aluminium, delbar, blästrad | 593,00 kr | 741,25 kr | |||
| GN195-V25-50-2-SW | T-koppling, aluminium, delbar, svart | 594,00 kr | 742,50 kr | |||
| GN195-V30-50-2-BL | T-koppling, aluminium, delbar, blästrad | 593,00 kr | 741,25 kr | |||
| GN195-V30-50-2-SW | T-koppling, aluminium, delbar, svart | 594,00 kr | 742,50 kr | |||
| GN195-V30-60-2-BL | T-koppling, aluminium, delbar, blästrad | 783,00 kr | 978,75 kr | |||
| GN195-V30-60-2-SW | T-koppling, aluminium, delbar, svart | 784,00 kr | 980,00 kr | |||
| GN195-V35-60-2-BL | T-koppling, aluminium, delbar, blästrad | 779,00 kr | 973,75 kr | |||
| GN195-V35-60-2-SW | T-koppling, aluminium, delbar, svart | 784,00 kr | 980,00 kr | |||
| GN195-V40-60-2-BL | T-koppling, aluminium, delbar, blästrad | 779,00 kr | 973,75 kr | |||
| GN195-V40-60-2-SW | T-koppling, aluminium, delbar, svart | 784,00 kr | 980,00 kr | |||
| GN195-V40-76-2-BL | T-koppling, aluminium, delbar, blästrad | 879,00 kr | 1 098,75 kr | |||
| GN195-V40-76-2-SW | T-koppling, aluminium, delbar, svart | 883,00 kr | 1 103,75 kr | |||
| GN195-V45-76-2-BL | T-koppling, aluminium, delbar, blästrad | 879,00 kr | 1 098,75 kr | |||
| GN195-V45-76-2-SW | T-koppling, aluminium, delbar, svart | 883,00 kr | 1 103,75 kr | |||
| GN195-V50-76-2-BL | T-koppling, aluminium, delbar, blästrad | 879,00 kr | 1 098,75 kr | |||
| GN195-V50-76-2-SW | T-koppling, aluminium, delbar, svart | 880,00 kr | 1 100,00 kr | |||
