Rostfri spärrbult GN114.6 med stift
Spärrbult helt gjord i rostfritt stål.
Beställningsexempel: GN114.6 10X25

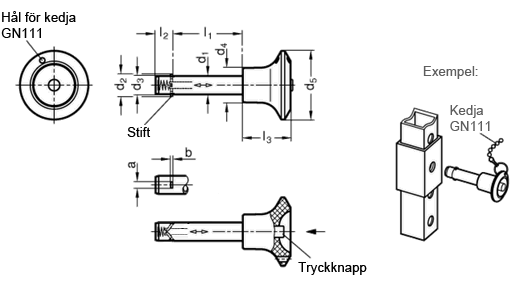

| d1 -0,1 | l1+0,4 | a | b | d2 | d3 | d4 | d5 | l2 | l3 | Max belastn. (dubbel avskärning, kN) | ||||||||
| 6 | 16 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | - | 2,3 | 0,5 | 7,5 | 5,9 | 15 | 30 | 7 | 21 | 14 |
| 8 | 16 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | - | 2,8 | 1 | 10,4 | 7,9 | 15 | 30 | 8,4 | 21 | 28 |
| 10 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 60 | - | 3,3 | 1 | 12,8 | 9,9 | 18 | 34 | 9,8 | 26 | 38 |
| 12 | 25 | 30 | 35 | 40 | 45 | 50 | 60 | 70 | 80 | 3,8 | 1 | 14,8 | 11,9 | 18 | 34 | 11,3 | 26 | 61 |
| 16 | 30 | 40 | 45 | 50 | 60 | 70 | 80 | - | - | 4,3 | 1,2 | 19,9 | 15,9 | 22 | 40 | 14,2 | 32 | 113 |
| Mängdrabatt | ||||
|---|---|---|---|---|
| Art.nr | Benämning | Kr/st ex.moms | -10% | -20% |
| GN114.6 6X16 | Spärrbult, rostfri knopp | 291.70 | 10 st | 50 st |
| GN114.6 6X20 | Spärrbult, rostfri knopp | 293.00 | 10 st | 50 st |
| GN114.6 6X25 | Spärrbult, rostfri knopp | 296.70 | 10 st | 50 st |
| GN114.6 6X30 | Spärrbult, rostfri knopp | 297.30 | 10 st | 50 st |
| GN114.6 6X35 | Spärrbult, rostfri knopp | 299.50 | 10 st | 50 st |
| GN114.6 6X40 | Spärrbult, rostfri knopp | 299.30 | 10 st | 50 st |
| GN114.6 6X45 | Spärrbult, rostfri knopp | 303.90 | 10 st | 50 st |
| GN114.6 6X50 | Spärrbult, rostfri knopp | 305.40 | 10 st | 50 st |
| GN114.6 8X16 | Spärrbult, rostfri knopp | 305.30 | 10 st | 50 st |
| GN114.6 8X20 | Spärrbult, rostfri knopp | 308.80 | 10 st | 50 st |
| GN114.6 8X25 | Spärrbult, rostfri knopp | 310.00 | 10 st | 50 st |
| GN114.6 8X30 | Spärrbult, rostfri knopp | 314.90 | 10 st | 50 st |
| GN114.6 8X35 | Spärrbult, rostfri knopp | 316.20 | 10 st | 50 st |
| GN114.6 8X40 | Spärrbult, rostfri knopp | 319.80 | 10 st | 50 st |
| GN114.6 8X45 | Spärrbult, rostfri knopp | 322.10 | 10 st | 50 st |
| GN114.6 8X50 | Spärrbult, rostfri knopp | 326.20 | 10 st | 50 st |
| GN114.6 10X20 | Spärrbult, rostfri knopp | 340.00 | 10 st | 50 st |
| GN114.6 10X25 | Spärrbult, rostfri knopp | 350.20 | 10 st | 50 st |
| GN114.6 10X30 | Spärrbult, rostfri knopp | 356.00 | 10 st | 50 st |
| GN114.6 10X35 | Spärrbult, rostfri knopp | 358.00 | 10 st | 50 st |
| GN114.6 10X40 | Spärrbult, rostfri knopp | 358.00 | 10 st | 50 st |
| GN114.6 10X45 | Spärrbult, rostfri knopp | 358.00 | 10 st | 50 st |
| GN114.6 10X50 | Spärrbult, rostfri knopp | 363.00 | 10 st | 50 st |
| GN114.6 10X60 | Spärrbult, rostfri knopp | 369.00 | 10 st | 50 st |
| GN114.6 12X25 | Spärrbult, rostfri knopp | 362.00 | 10 st | 50 st |
| GN114.6 12X30 | Spärrbult, rostfri knopp | 363.00 | 10 st | 50 st |
| GN114.6 12X35 | Spärrbult, rostfri knopp | 368.00 | 10 st | 50 st |
| GN114.6 12X40 | Spärrbult, rostfri knopp | 369.00 | 10 st | 50 st |
| GN114.6 12X45 | Spärrbult, rostfri knopp | 370.00 | 10 st | 50 st |
| GN114.6 12X50 | Spärrbult, rostfri knopp | 375.00 | 10 st | 50 st |
| GN114.6 12X60 | Spärrbult, rostfri knopp | 379.00 | 10 st | 50 st |
| GN114.6 12X70 | Spärrbult, rostfri knopp | 384.00 | 10 st | 50 st |
| GN114.6 12X80 | Spärrbult, rostfri knopp | 387.00 | 10 st | 50 st |
| GN114.6 16X30 | Spärrbult, rostfri knopp | 442.00 | 10 st | 50 st |
| GN114.6 16X40 | Spärrbult, rostfri knopp | 455.00 | 10 st | 50 st |
| GN114.6 16X45 | Spärrbult, rostfri knopp | 456.00 | 10 st | 50 st |
| GN114.6 16X50 | Spärrbult, rostfri knopp | 459.00 | 10 st | 50 st |
| GN114.6 16X60 | Spärrbult, rostfri knopp | 467.00 | 10 st | 50 st |
| GN114.6 16X70 | Spärrbult, rostfri knopp | 474.00 | 10 st | 50 st |
| GN114.6 16X80 | Spärrbult, rostfri knopp | 482.00 | 10 st | 50 st |
