Gaffel DIN71752
Gaffellänk i elförzinkat stål.
Invändig vänstergänga anges med V efter artikelnumret.
Beställningsexempel: DIN71752 M8X16

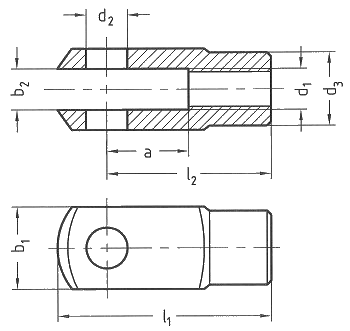

| d1 | a | b1 | b2 | d2 | d3 | l1 | l2 |
| M4\* | 8 | 8 | 4 | 4 | 8 | 21 | 16 |
| M4\* | 16 | 8 | 4 | 4 | 8 | 29 | 24 |
| M5\* | 10 | 10 | 5 | 5 | 9 | 26 | 20 |
| M5\* | 20 | 10 | 5 | 5 | 9 | 36 | 30 |
| M6 | 12 | 12 | 6 | 6 | 10 | 31 | 24 |
| M6 | 24 | 12 | 6 | 6 | 10 | 43 | 36 |
| M8 | 16 | 16 | 8 | 8 | 14 | 42 | 32 |
| M8 | 32 | 16 | 8 | 8 | 14 | 58 | 48 |
| M10 | 20 | 20 | 10 | 10 | 18 | 52 | 40 |
| M10 | 40 | 20 | 10 | 10 | 18 | 72 | 60 |
| M12 | 24 | 24 | 12 | 12 | 20 | 62 | 48 |
| M12 | 48 | 24 | 12 | 12 | 20 | 86 | 72 |
| M14 | 28 | 27 | 14 | 14 | 24 | 72 | 56 |
| M14 | 56 | 27 | 14 | 14 | 24 | 101 | 85 |
| M16 | 32 | 32 | 16 | 16 | 26 | 83 | 64 |
| M16 | 64 | 32 | 16 | 16 | 26 | 115 | 96 |
| M20 | 40 | 40 | 20 | 20 | 34 | 105 | 80 |
| M24\* | 50 | 50 | 25 | 25 | 42 | 132 | 100 |
| Mängdrabatt | ||||
|---|---|---|---|---|
| Art.nr | Benämning | Kr/st ex.moms | -10% | -20% |
| DIN71752 M4X8 | Gaffel, FZB | 13.20 | 50 st | 250 st |
| DIN71752 M4X16 | Gaffel, FZB | 13.20 | 50 st | 250 st |
| DIN71752 M5X10 | Gaffel, FZB | 11.00 | 50 st | 250 st |
| DIN71752 M5X20 | Gaffel, FZB | 11.60 | 50 st | 250 st |
| DIN71752 M6X12 | Gaffel, FZB | 12.60 | 50 st | 250 st |
| DIN71752 M6X24 | Gaffel, FZB | 13.10 | 50 st | 250 st |
| DIN71752 M8X16 | Gaffel, FZB | 14.20 | 50 st | 250 st |
| DIN71752 M8X32 | Gaffel, FZB | 15.20 | 50 st | 250 st |
| DIN71752 M10X20 | Gaffel, FZB | 22.10 | 50 st | 250 st |
| DIN71752 M10X40 | Gaffel, FZB | 28.90 | 20 st | 100 st |
| DIN71752 M12X24 | Gaffel, FZB | 35.70 | 20 st | 100 st |
| DIN71752 M12X48 | Gaffel, FZB | 48.80 | 20 st | 100 st |
| DIN71752 M14X28 | Gaffel, FZB | 55.10 | 10 st | 50 st |
| DIN71752 M14X56 | Gaffel, FZB | 79.20 | 10 st | 50 st |
| DIN71752 M16X32 | Gaffel, FZB | 83.50 | 10 st | 50 st |
| DIN71752 M16X64 | Gaffel, FZB | 105.00 | 10 st | 50 st |
| DIN71752 M20X40 | Gaffel, FZB | 142.80 | 10 st | 50 st |
| DIN71752 M24X50 | Gaffel, FZB | 380.00 | — | — |
| DIN71752 M6X12 V | Gaffel, vänster, FZB | 21.80 | 20 st | 100 st |
| DIN71752 M8X16 V | Gaffel, vänster, FZB | 25.40 | 20 st | 100 st |
| DIN71752 M8X32 V | Gaffel, vänster, FZB | 21.50 | 20 st | 100 st |
| DIN71752 M10X20 V | Gaffel, vänster, FZB | 25.90 | 20 st | 100 st |
| DIN71752 M10X40 V | Gaffel, vänster, FZB | 34.70 | 20 st | 100 st |
| DIN71752 M12X24 V | Gaffel, vänster, FZB | 39.60 | 20 st | 100 st |
| DIN71752 M12X48 V | Gaffel, vänster, FZB | 86.70 | 20 st | 100 st |
| DIN71752 M14X28 V | Gaffel, vänster, FZB | 88.40 | 10 st | 50 st |
| DIN71752 M14X56 V | Gaffel, vänster, FZB | 118.20 | 10 st | 50 st |
| DIN71752 M16X32 V | Gaffel, vänster, FZB | 87.20 | 10 st | 50 st |
| DIN71752 M16X64 V | Gaffel, vänster, FZB | 108.90 | 10 st | 50 st |
| DIN71752 M20X40 V | Gaffel, vänster, FZB | 149.10 | 10 st | 50 st |
