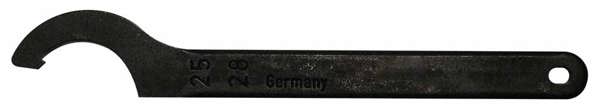

Nyckel DIN1810 för åtdragning av hakmuttrar
Hakmutternyckel i härdat stål, avsedd för att dra åt hakmutter DIN1804.

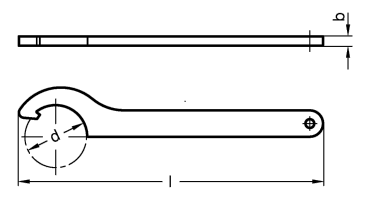

Mått d i tabellen nedan avser hakmutterns min- respektive max-diameter.
Beställningsexempel: DIN1810-A30-32

d min | d max | l | b |
16 | 20 | 110 | 3 |
25 | 28 | 136 | 4 |
30 | 32 | 136 | 4 |
34 | 36 | 170 | 5 |
40 | 42 | 170 | 5 |
45 | 50 | 206 | 6 |
52 | 55 | 206 | 6 |
58 | 62 | 240 | 7 |
68 | 75 | 240 | 7 |
80 | 90 | 280 | 8 |
Art.nr | Benämning | Kr/st ex.moms | Kr/st ink.moms | |||
---|---|---|---|---|---|---|
DIN1810-A16-20 | Nyckel till hakmutter | 107,60 kr | 134,50 kr | |||
DIN1810-A25-28 | Nyckel till hakmutter | 110,80 kr | 138,50 kr | |||
DIN1810-A30-32 | Nyckel till hakmutter | 112,20 kr | 140,25 kr | |||
DIN1810-A34-36 | Nyckel till hakmutter | 139,20 kr | 174,00 kr | |||
DIN1810-A40-42 | Nyckel till hakmutter | 139,30 kr | 174,13 kr | |||
DIN1810-A45-50 | Nyckel till hakmutter | 153,10 kr | 191,38 kr | |||
DIN1810-A52-55 | Nyckel till hakmutter | 157,20 kr | 196,50 kr | |||
DIN1810-A58-62 | Nyckel till hakmutter | 224,30 kr | 280,38 kr | |||
DIN1810-A68-75 | Nyckel till hakmutter | 224,20 kr | 280,25 kr | |||
DIN1810-A80-90 | Nyckel till hakmutter | 317,10 kr | 396,38 kr |
Scrolla i sidled för fler kolumner
