Rund råmagnet GN55.1 i neodym med centrumhål
Råmagnet i neodym med centrumhål.
Beställningsexempel: GN55.1-ND-32-10,5-2
CAD-filer

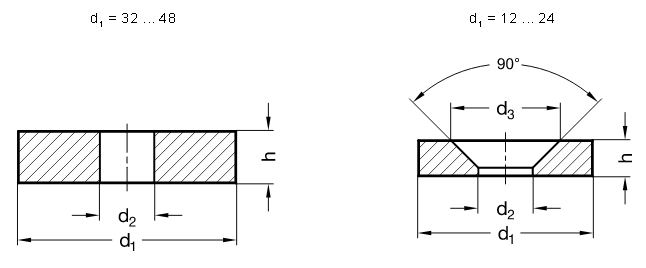

d1 | d2 ±0.1 | h ±0.1 | d3 +0.5 | Nominell häftkraft (N) | |
12 ±0.1 | Försänkt hål | 3,5 ±0.1 | 3 | 6,6 | 18 |
15 ±0.1 | Försänkt hål | 4,5 ±0.1 | 3,5 | 9,3 | 29 |
18 ±0.1 | Försänkt hål | 4,5 ±0.1 | 4 | 9,3 | 41 |
24 ±0.1 | Försänkt hål | 5,5 ±0.1 | 4 | 11,5 | 66 |
32 ±0.2 | Rakt hål | 10,5 ±0.2 | 2 | - | 42 |
38 ±0.1 | Rakt hål | 12 ±0.1 | 4 | - | 110 |
48 ±0.2 | Rakt hål | 15 ±0.1 | 5 | - | 165 |
56 ±0.2 | Rakt hål | 15 ±0.1 | 6 | - | 230 |
Art.nr | Benämning | Kr/st ex.moms | Kr/st ink.moms | Mängdrabatt | |||
---|---|---|---|---|---|---|---|
-10% | -20% | ||||||
GN55.1-ND-12-3,5-3 | Råmagnet, försänkt centrumhål, neodym | 23,50 kr | 29,38 kr | 10 st | 50 st | ||
GN55.1-ND-15-4,5-3,5 | Råmagnet, försänkt centrumhål, neodym | 39,40 kr | 49,25 kr | 10 st | 50 st | ||
GN55.1-ND-18-4,5-4 | Råmagnet, försänkt centrumhål, neodym | 51,60 kr | 64,50 kr | 10 st | 50 st | ||
GN55.1-ND-24-5,5-4 | Råmagnet, försänkt centrumhål, neodym | 83,90 kr | 104,88 kr | 10 st | 50 st | ||
GN55.1-ND-32-10,5-2 | Råmagnet, rakt centrumhål, neodym | 96,60 kr | 120,75 kr | 10 st | 50 st | ||
GN55.1-ND-38-12-4 | Råmagnet, rakt centrumhål, neodym | 141,00 kr | 176,25 kr | — | — | ||
GN55.1-ND-48-15-5 | Råmagnet, rakt centrumhål, neodym | 220,00 kr | 275,00 kr | — | — | ||
GN55.1-ND-56-15-6 | Råmagnet, rakt centrumhål, neodym | 372,00 kr | 465,00 kr | — | — |
Scrolla i sidled för fler kolumner
